kubesphere原理介绍

@startuml
actor client
control KubeApiServer as Api
database ETCD

==资源状态crud==
client -> Api: 创建/查询/更新/删除资源
Api -> ETCD
ETCD --> client
==资源状态/事件监听==
Api -> ETCD
Api -> client: HTTP长连接+chunked / ws 事件推送
@enduml

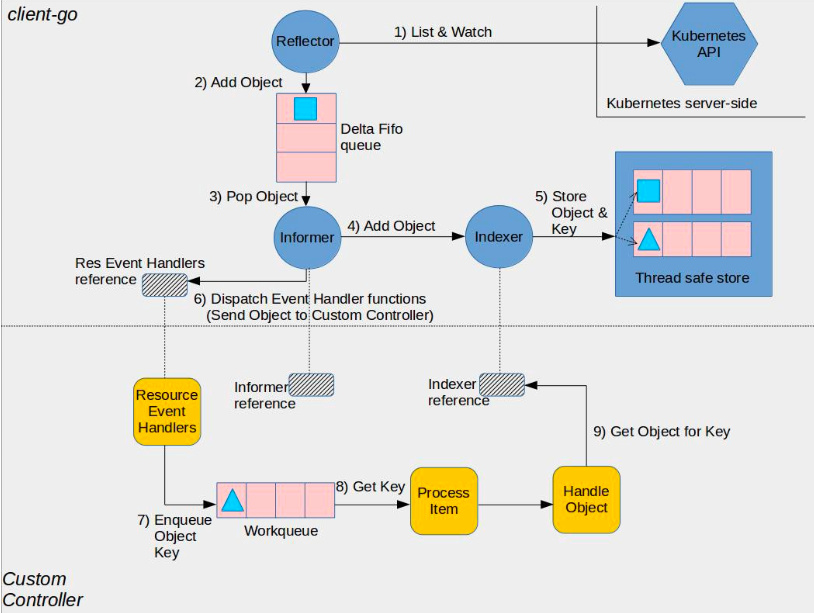

@startuml
control KubeApiServer as Api
boundary Reflector as ref
queue  Queue as queue
database Store as store
collections indexer as indexer
queue WorkerQueue as wq
actor handler as handler

Api->ref: 事件/推送
ref->queue: 事件预处理/过滤/分发/hook
ref->store: 资源缓存同步/更新
store-->Api: 资源全量更新(初始化/周期性)
store->indexer: 构造索引/查询方式
queue->wq: obj name/namespaces
alt implement
    wq->handler: hook
    handler-->indexer: query
end
@enduml

type controller struct {
	config         Config
	reflector      *Reflector
	reflectorMutex sync.RWMutex
	clock          clock.Clock
}

type Controller interface {
	// Run does two things.  One is to construct and run a Reflector
	// to pump objects/notifications from the Config's ListerWatcher
	// to the Config's Queue and possibly invoke the occasional Resync
	// on that Queue.  The other is to repeatedly Pop from the Queue
	// and process with the Config's ProcessFunc.  Both of these
	// continue until `stopCh` is closed.
	Run(stopCh <-chan struct{})

	// HasSynced delegates to the Config's Queue
	HasSynced() bool

	// LastSyncResourceVersion delegates to the Reflector when there
	// is one, otherwise returns the empty string
	LastSyncResourceVersion() string
}

func (c *controller) Run(stopCh <-chan struct{}) {
	defer utilruntime.HandleCrash()
	go func() {
		<-stopCh
		c.config.Queue.Close()
	}()
	r := NewReflector(
		c.config.ListerWatcher,
		c.config.ObjectType,
		c.config.Queue,
		c.config.FullResyncPeriod,
	)
	r.ShouldResync = c.config.ShouldResync
	r.WatchListPageSize = c.config.WatchListPageSize
	r.clock = c.clock
	if c.config.WatchErrorHandler != nil {
		r.watchErrorHandler = c.config.WatchErrorHandler
	}

	c.reflectorMutex.Lock()
	c.reflector = r
	c.reflectorMutex.Unlock()

	var wg wait.Group

	wg.StartWithChannel(stopCh, r.Run)

	wait.Until(c.processLoop, time.Second, stopCh)
	wg.Wait()
}

// resource ListAndWatch
func (r *Reflector) Run(stopCh <-chan struct{}) {
	klog.V(3).Infof("Starting reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)
	wait.BackoffUntil(func() {
		if err := r.ListAndWatch(stopCh); err != nil {
			r.watchErrorHandler(r, err)
		}
	}, r.backoffManager, true, stopCh)
	klog.V(3).Infof("Stopping reflector %s (%s) from %s", r.expectedTypeName, r.resyncPeriod, r.name)
}

// obj handler loop
func (c *controller) processLoop() {
	for {
		obj, err := c.config.Queue.Pop(PopProcessFunc(c.config.Process))
		if err != nil {
			if err == ErrFIFOClosed {
				return
			}
			if c.config.RetryOnError {
				// This is the safe way to re-enqueue.
				c.config.Queue.AddIfNotPresent(obj)
			}
		}
	}
}

func (r *Reflector) ListAndWatch(stopCh <-chan struct{}) error {
	klog.V(3).Infof("Listing and watching %v from %s", r.expectedTypeName, r.name)
	var resourceVersion string

	options := metav1.ListOptions{ResourceVersion: r.relistResourceVersion()}

	if err := func() error {
		go func() {
			defer func() {
				if r := recover(); r != nil {
					panicCh <- r
				}
			}()

			pager := pager.New(pager.SimplePageFunc(func(opts metav1.ListOptions) (runtime.Object, error) {
				return r.listerWatcher.List(opts)
			}))
			list, paginatedResult, err = pager.List(context.Background(), options)
			close(listCh)
		}()
		select {
		case <-stopCh:
			return nil
		case r := <-panicCh:
			panic(r)
		case <-listCh:
		}


		listMetaInterface, err := meta.ListAccessor(list)
		if err != nil {
			return fmt.Errorf("unable to understand list result %#v: %v", list, err)
		}
		resourceVersion = listMetaInterface.GetResourceVersion()

		items, err := meta.ExtractList(list)
		if err != nil {
			return fmt.Errorf("unable to understand list result %#v (%v)", list, err)
		}

		if err := r.syncWith(items, resourceVersion); err != nil {
			return fmt.Errorf("unable to sync list result: %v", err)
		}

		return nil
	}(); err != nil {
		return err
	}

	resyncerrc := make(chan error, 1)
	cancelCh := make(chan struct{})
	defer close(cancelCh)
	go func() {
		resyncCh, cleanup := r.resyncChan()
		defer func() {
			cleanup() // Call the last one written into cleanup
		}()
		for {
			select {
			case <-resyncCh:
			case <-stopCh:
				return
			case <-cancelCh:
				return
			}
			if r.ShouldResync == nil || r.ShouldResync() {
				klog.V(4).Infof("%s: forcing resync", r.name)
				if err := r.store.Resync(); err != nil {
					resyncerrc <- err
					return
				}
			}
			cleanup()
			resyncCh, cleanup = r.resyncChan()
		}
	}()

	for {
		// give the stopCh a chance to stop the loop, even in case of continue statements further down on errors
		select {
		case <-stopCh:
			return nil
		default:
		}

		timeoutSeconds := int64(minWatchTimeout.Seconds() * (rand.Float64() + 1.0))
		options = metav1.ListOptions{
			ResourceVersion: resourceVersion,
			TimeoutSeconds: &timeoutSeconds,
			AllowWatchBookmarks: true,
		}

		// start the clock before sending the request, since some proxies won't flush headers until after the first watch event is sent
		start := r.clock.Now()
		w, err := r.listerWatcher.Watch(options)
		if err != nil {
			return err
		}

		if err := r.watchHandler(start, w, &resourceVersion, resyncerrc, stopCh); err != nil {

		}
	}
}

func NewFilteredListWatchFromClient(c Getter, resource string, namespace string, optionsModifier func(options *metav1.ListOptions)) *ListWatch {
	listFunc := func(options metav1.ListOptions) (runtime.Object, error) {
		optionsModifier(&options)
		return c.Get().
			Namespace(namespace).
			Resource(resource).
			VersionedParams(&options, metav1.ParameterCodec).
			Do(context.TODO()).
			Get()
	}
	watchFunc := func(options metav1.ListOptions) (watch.Interface, error) {
		options.Watch = true
		optionsModifier(&options)
		return c.Get().
			Namespace(namespace).
			Resource(resource).
			VersionedParams(&options, metav1.ParameterCodec).
			Watch(context.TODO())
	}
	return &ListWatch{ListFunc: listFunc, WatchFunc: watchFunc}

func (r *Reflector) watchHandler(start time.Time, w watch.Interface, resourceVersion *string, errc chan error, stopCh <-chan struct{}) error {
	eventCount := 0
	defer w.Stop()

loop:
	for {
		select {
		case <-stopCh:
			return errorStopRequested
		case err := <-errc:
			return err
		case event, ok := <-w.ResultChan():
			if !ok {
				break loop
			}
			if event.Type == watch.Error {
				return apierrors.FromObject(event.Object)
			}
			if r.expectedType != nil {
				if e, a := r.expectedType, reflect.TypeOf(event.Object); e != a {
					utilruntime.HandleError(fmt.Errorf("%s: expected type %v, but watch event object had type %v", r.name, e, a))
					continue
				}
			}
			if r.expectedGVK != nil {
				if e, a := *r.expectedGVK, event.Object.GetObjectKind().GroupVersionKind(); e != a {
					utilruntime.HandleError(fmt.Errorf("%s: expected gvk %v, but watch event object had gvk %v", r.name, e, a))
					continue
				}
			}
			meta, err := meta.Accessor(event.Object)
			if err != nil {
				utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
				continue
			}
			newResourceVersion := meta.GetResourceVersion()
			switch event.Type {
			case watch.Added:
				err := r.store.Add(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to add watch event object (%#v) to store: %v", r.name, event.Object, err))
				}
			case watch.Modified:
				err := r.store.Update(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to update watch event object (%#v) to store: %v", r.name, event.Object, err))
				}
			case watch.Deleted:
				err := r.store.Delete(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to delete watch event object (%#v) from store: %v", r.name, event.Object, err))
				}
			case watch.Bookmark:
				// A `Bookmark` means watch has synced here, just update the resourceVersion
			default:
				utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
			}
			*resourceVersion = newResourceVersion
			r.setLastSyncResourceVersion(newResourceVersion)
			if rvu, ok := r.store.(ResourceVersionUpdater); ok {
				rvu.UpdateResourceVersion(newResourceVersion)
			}
			eventCount++
		}
	}

	return nil
}

// Reflector watches a specified resource and causes all changes to be reflected in the given store.
type Reflector struct {
	// name identifies this reflector. By default it will be a file:line if possible.
	name string
	expectedTypeName string
	expectedType reflect.Type
	// The GVK of the object we expect to place in the store if unstructured.
	expectedGVK *schema.GroupVersionKind
	// The destination to sync up with the watch source
	store Store
	// listerWatcher is used to perform lists and watches.
	listerWatcher ListerWatcher

	// backoff manages backoff of ListWatch
	backoffManager wait.BackoffManager
	// initConnBackoffManager manages backoff the initial connection with the Watch calll of ListAndWatch.
	initConnBackoffManager wait.BackoffManager

	resyncPeriod time.Duration
	// ShouldResync is invoked periodically and whenever it returns `true` the Store's Resync operation is invoked
	ShouldResync func() bool
	// clock allows tests to manipulate time
	clock clock.Clock
	// paginatedResult defines whether pagination should be forced for list calls.
	// It is set based on the result of the initial list call.
	paginatedResult bool
	lastSyncResourceVersion string
	isLastSyncResourceVersionUnavailable bool
	// lastSyncResourceVersionMutex guards read/write access to lastSyncResourceVersion
	lastSyncResourceVersionMutex sync.RWMutex
	WatchListPageSize int64
	// Called whenever the ListAndWatch drops the connection with an error.
	watchErrorHandler WatchErrorHandler
}

// 周期性同步
go func() {
		resyncCh, cleanup := r.resyncChan()
		defer func() {
			cleanup() // Call the last one written into cleanup
		}()
		for {
			select {
			case <-resyncCh:
			case <-stopCh:
				return
			case <-cancelCh:
				return
			}
			if r.ShouldResync == nil || r.ShouldResync() {
				klog.V(4).Infof("%s: forcing resync", r.name)
				if err := r.store.Resync(); err != nil {
					resyncerrc <- err
					return
				}
			}
			cleanup()
			resyncCh, cleanup = r.resyncChan()
		}
	}()

// 事件触发时同步
func (r *Reflector) watchHandler(start time.Time, w watch.Interface, resourceVersion *string, errc chan error, stopCh <-chan struct{}) error {
	eventCount := 0
	defer w.Stop()

loop:
	for {
		select {
		case <-stopCh:
			return errorStopRequested
		case err := <-errc:
			return err
		case event, ok := <-w.ResultChan():
			meta, err := meta.Accessor(event.Object)
			if err != nil {
				utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
				continue
			}
			newResourceVersion := meta.GetResourceVersion()
			switch event.Type {
			case watch.Added:
				err := r.store.Add(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to add watch event object (%#v) to store: %v", r.name, event.Object, err))
				}
			case watch.Modified:
				err := r.store.Update(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to update watch event object (%#v) to store: %v", r.name, event.Object, err))
				}
			case watch.Deleted:
				err := r.store.Delete(event.Object)
				if err != nil {
					utilruntime.HandleError(fmt.Errorf("%s: unable to delete watch event object (%#v) from store: %v", r.name, event.Object, err))
				}
			case watch.Bookmark:
				// A `Bookmark` means watch has synced here, just update the resourceVersion
			default:
				utilruntime.HandleError(fmt.Errorf("%s: unable to understand watch event %#v", r.name, event))
			}
			*resourceVersion = newResourceVersion
			r.setLastSyncResourceVersion(newResourceVersion)
			if rvu, ok := r.store.(ResourceVersionUpdater); ok {
				rvu.UpdateResourceVersion(newResourceVersion)
			}
			eventCount++
		}
	}

	return nil
}

@startuml

actor User as user
participant Console as console
participant ks_apiserver as api
participant controller_manager as controller
participant informer
participant identity_provider

user->console: login
user->console: post /login params: username password(encrypt)
console->api: post /oauth/token: username password grant_type
api->identity_provider: 根据grant_type选择认证方式
identity_provider-->api: 返回identity信息
api->informer:校验identity关联的user cr信息
api-->console:redirect / or /login/confirm or /password/confirm
console->console: redirect /dashboard

@enduml
